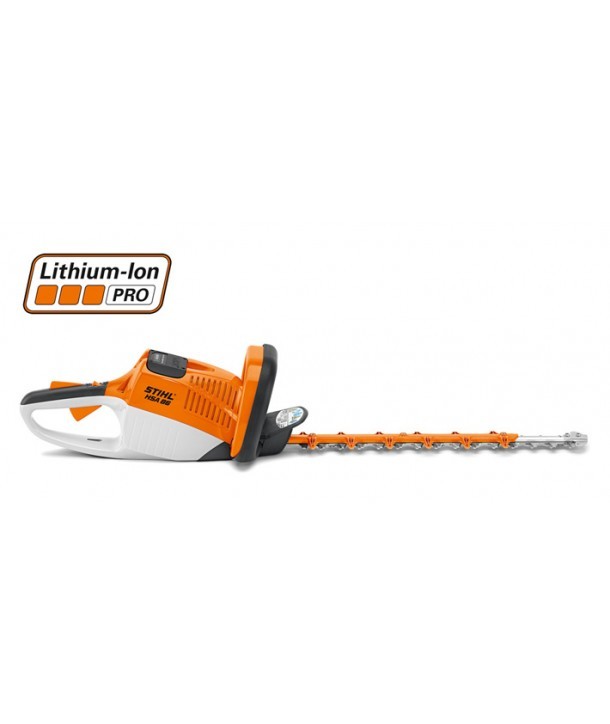

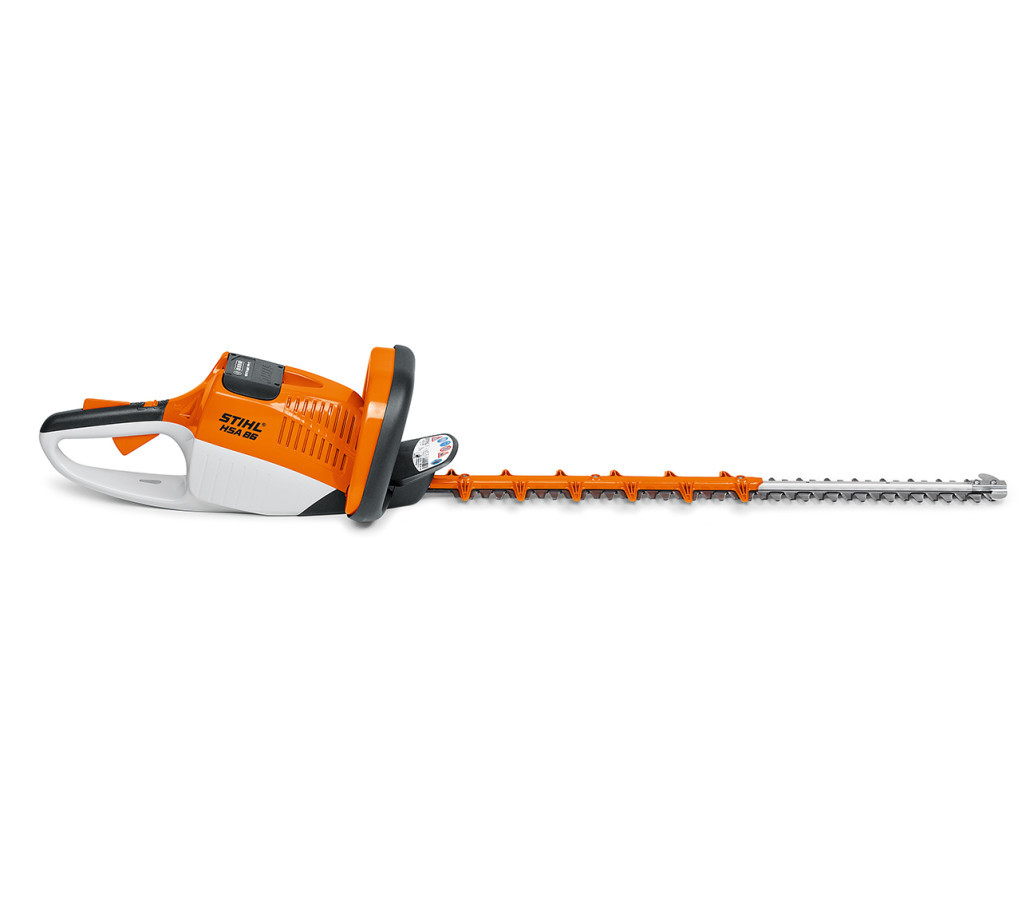

HSA 86

Get a Price/Quote

MOQ : 1 Set

HSA 86 Specification

Dimension (L*W*H)
1140 mm x 220 mm x 220 mm

Cutting Width
50 cm

Automation
Manual operation

Weight
3.0 kg (without battery)

Machine Type
Cordless hedge trimmer

Blade Type
Laser-cut, diamond-ground steel

Power
36 V (battery voltage)

Cutter Type
Double-sided reciprocating blades

Voltage
36 V

Drive Type
Electric, Battery Powered

Capacity
Recommended with AP 115/160/200 battery

Usage & Applications
Trimming and shaping medium to large hedges and shrubs

Product Type
Battery Hedge Trimmer

Material
High-grade polymer housing, steel blades

Cultivator Type
Handheld Shrub Shear

Finish
Premium

Size
Overall length 114 cm

About HSA 86

In order to meet the various requirements of the clients we are offering Handy Cordless Hedge Trimmer with utmost quality. The offered hedge trimmer is exclusively known for fast and easy trimming of hedge in the gardens and parks. It is powered with Lithium Battery maximum comfort of the users. This engine is very easy to start. Battery Hedge Trimmer is adjustable for varied angles (up to five positions) which enable a user ergonomic working position at all times.

Technical specifications :

Rated voltage	36 V
Weight 1)	3,1 kg
Sound pressure level 2)	83 dB(A)
Sound power level 2)	94 dB(A)
Vibration level left/right 3)	3,7/2,3 m/s
Bar length	50 cm
Tooth spacing	30 mm
Recommended battery	AP 200
Battery technology	Lithium-Ion PRO
Battery life time AP 100 4)	60 min
Battery life time AP 200 4)	120 min
Battery life time AP 300 4)	180 min
Battery life time AR 1000 4)	450 min
Battery life time AR 2000 4)	600 min
Battery life time AR 3000 4)	800 min

Note :

Without battery
K-factor according to DIR 2006/42/EC = 2.5 dB (A)
K-factor according to DIR 2006/42/EC = 2m / s
Battery life times are approximate and may vary depending on application.

Professional Cutting Performance

With its double-sided reciprocating blades and a stroke rate of 3,000 strokes per minute, the HSA 86 offers excellent cutting performance. The tool can tackle branches up to 23 mm thick, making it suitable for a variety of hedge sizes and plant species. Laser-cut, diamond-ground steel blades deliver a clean cut, reducing plant damage and promoting healthy growth.

Extended Battery Runtime & Lightweight Design

This hedge trimmer runs up to 144 minutes with the AP 200 battery. Weighing just 3.0 kg (excluding battery) and measuring 114 cm in length, the HSA 86 is easy to maneuver for prolonged use. Compatible with AP 115/160/200 batteries and AL 101/AL 300 chargers, it allows for flexible operation and quick recharging between tasks.

Low Noise and Vibration for Comfortable Use

Operating at a sound pressure level of just 83 dB(A) and minimal vibration (3.7/2.3 m/s left/right), the HSA 86 ensures comfortable use during extended periods. The ergonomic loop handle enhances grip and control, minimizing fatigue for professionals and homeowners alike.

FAQs of HSA 86:

Q: How do I use the HSA 86 cordless hedge trimmer for optimal results?

A: For best performance, use the HSA 86 to trim and shape medium to large hedges and shrubs. Ensure the battery is fully charged, hold the trimmer with both hands using the ergonomic loop handle, and guide the double-sided blades along the plant for even cuts. Avoid forcing the blades through branches thicker than 23 mm.

Q: What type of battery and charger are recommended for the HSA 86?

A: The HSA 86 hedge trimmer works optimally with AP 115, AP 160, or AP 200 batteries, with the AP 200 offering up to 144 minutes of runtime. Recommended chargers for quick and safe charging are the AL 101 and AL 300.

Q: When should I replace or sharpen the blades on my HSA 86?

A: You should inspect the blades regularly and sharpen or replace them when you notice reduced cutting performance or jagged cuts. Frequent use or cutting tough branches may require more regular maintenance to keep the laser-cut, diamond-ground steel blades at their best.

Q: Where can I use the HSA 86 hedge trimmer in my garden?

A: You can use the HSA 86 for trimming and shaping hedges, shrubs, and ornamental bushes in residential, commercial, or institutional gardens. Its quiet operation makes it suitable for noise-sensitive environments.

Q: What is the process for recharging the HSA 86s battery?

A: To recharge the HSA 86s battery, remove it from the trimmer and place it in the compatible charger (AL 101 or AL 300). Charge times vary depending on the battery model, ensuring quick readiness for your next gardening session.

Q: How is the HSA 86 beneficial for professional landscaping tasks?

A: The HSA 86 is lightweight, powerful, and runs quietly, making it ideal for professionals working in urban or residential areas. Its convenient cordless design and long battery life facilitate uninterrupted work, while precision blades support high-quality finishes.

Q: What safety measures should I follow while operating the HSA 86?

A: Always wear protective gloves and eye protection, keep hands clear of the blades, and ensure the area is free from obstructions before starting. Follow the manufacturers instructions for safe battery handling and operation to avoid accidents.
